Volleyball Perimeter Netting is an outer protective system designed for volleyball courts. Its core function is to reliably contain the ball within the playing area during training and matches while protecting players, spectators, and surrounding areas from stray balls.
It is widely used in indoor volleyball gyms, beach volleyball courts, school sports fields, municipal sports centers, and professional training bases. It is an essential safety component of volleyball court infrastructure.

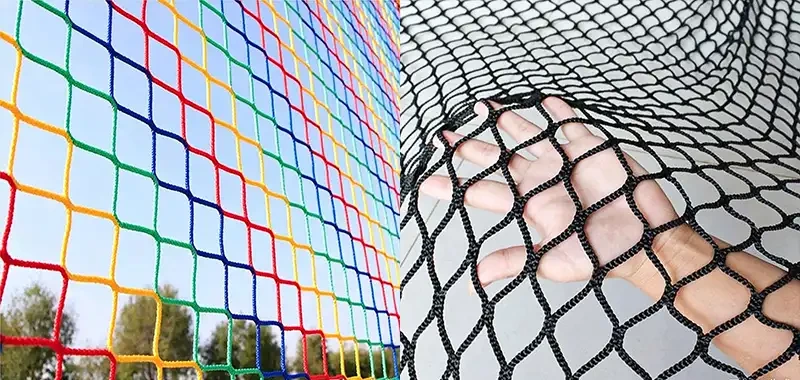

Volleyball perimeter netting is built around high-strength materials that balance durability and safety.
Net body: High-strength polyester or UV-stabilized polypropylene.
Weaving: Knotless weaving reduces localized stress concentration when the ball impacts the net, lowers wear, keeps the net surface flat, and prevents the ball from snagging and changing trajectory.
Frame and posts: Galvanized steel pipe or powder-coated aluminum alloy profiles.
Corrosion protection: Anti-rust primer and topcoat treatment for long-term outdoor exposure.
Common post specifications: 60 mm or 75 mm diameter round tube, wall thickness ≥ 2.5 mm, supporting net heights up to 4 m.
| Parameter | Standard Specification | Optional Specification |
|---|---|---|
| Mesh Size | 50 × 50 mm / 100 × 100 mm | 45 × 45 mm, 120 × 120 mm |
| Wire Diameter | 3.8 mm–4.0 mm | 3.0 mm, 5.0 mm |
| Net Height | 3000 mm–4000 mm | Customized to court |
| Panel Size | 3000 mm × 4000 mm | Adjustable |
| Net Color | Black, Green | White and custom colors |
| Operating Temperature | -30°C to +70°C | — |
Mesh size should balance protection and visibility. A 50 × 50 mm mesh is the standard choice for volleyball courts. It effectively blocks a volleyball with a diameter of approximately 210 mm while maintaining good visibility for coaches and spectators. A 100 × 100 mm mesh is suitable for shared volleyball and soccer fields, meeting the protection needs of both sports.
The product includes specific safety considerations.
Safe netting design: Posts are installed outside the court, so athletes contact the flexible net surface rather than rigid posts when they collide with the netting. This significantly reduces the risk of sports injury.
Flat or curved net surface: Curved designs offer a softer visual appearance while enhancing overall net tension and impact resistance.
Weighted bottom band: Usually approximately 400 g/m, keeping the net stable in wind and preventing the bottom from lifting and creating protection gaps.
Reinforced top and corners: Reinforced with rope or steel cable with break strength above 2400 lb, ensuring structural integrity under high-intensity use.
The volleyball perimeter netting system supports flexible on-site installation.
Posts can be fixed by concrete pouring or ground sleeves.
Post spacing is generally 5 m.
The net and frame use an integrated connection design to keep the net surface flat and taut, avoiding local slack that could affect protection.
The chain-link woven structure allows a single damaged wire to be replaced independently without full disassembly, reducing maintenance cost and improving efficiency.
Routine maintenance only requires periodic checks of net tension and fastener tightness. Under normal use, the system can operate stably for many years.
Volleyball perimeter netting is not only a basic protective facility but also a key part of venue safety management and operational efficiency. Properly installed netting can reduce accidental injuries and property damage caused by stray balls and help ensure uninterrupted training and matches.
The product supports customization of size, color, and brand identification, helping venues maintain a consistent visual identity while meeting functional requirements. For sports venues seeking long-term return on investment, high-quality volleyball perimeter netting is a safe and cost-effective infrastructure choice.
Volleyball perimeter netting is an outer protective netting system for volleyball courts. It keeps balls inside the playing area during training and matches while protecting players, spectators, and surrounding property from stray balls.
A 50 × 50 mm mesh is the standard choice for volleyball courts. A 100 × 100 mm mesh is suitable for multi-sport courts shared by volleyball and soccer.
Yes. UV-stabilized netting and galvanized or powder-coated posts provide durability for long-term outdoor exposure.
Yes. Size, height, color, mesh size, and brand identification can be customized according to court requirements.
